Avocent HMX 5000/6000 Series High Performance KVM System

产品简介:

Digital Extension and Matrix Switching for Any Environment

  • 产品基本信息
  • 产品特点与优点
Overview

The Avocent® HMX Digital High Performance KVM system is designed for organizations that need to provide workers the ability to seamlessly access and share one or more computing resource(s) which are physically separated from their work environment. This solution provides users an “at-the-desktop” experience from their work stations to any appliances, PCs or computing resources attached to the HMX IP network. This real-time, high-quality “at-the-PC” user experience is perfect for demanding environments such as pre and postproduction editing (broadcast), control rooms (broadcast, industrial, manufacturing, energy/utilities, IT, telecom and emergency response) and collaborative environments (training/simulation, medical diagnosis and imaging and financial trading desks).

Today, the Avocent HMX Digital High Performance KVM system empowers the command centers of major hydroelectric plants; streamlines the editing of Hollywood blockbusters and is used in production environments by a vast majority of major broadcasting television and cable networks. In these and other cases, the Avocent HMX Digital High Performance KVM system enables organizations to improve employee productivity, reduce IT costs and, ultimately, produce better business results for their customers.

The Avocent HMX Digital High Performance KVM system is the ideal solution for these demanding environments. The solution can be easily deployed over a local area network (LAN). It supports a comprehensive range of peripherals including DVI-I video, digital audio, USB mass storage, keyboard and mouse and other USB devices.

The Avocent HMX Digital High Performance KVM system is ideal for the enterprise market bringing a robust set of administrative tools with the Avocent HMX Advanced Manager Solution. The Avocent HMX Advanced Manager Solution provides administration and connection-management control from a central location, enabling the desktop administrator to effectively and efficiently manage the computing resources without compromising the user experience.

Ordering Details
HMX MANAGER
Description Part Number
Avocent HMX Advanced Manager – supports 24 end points HMXAMGR24-xxx
HMX 5000
Description Part Number
HMX TX single DVI-D, USB, audio, SFP HMX5100T-xxx

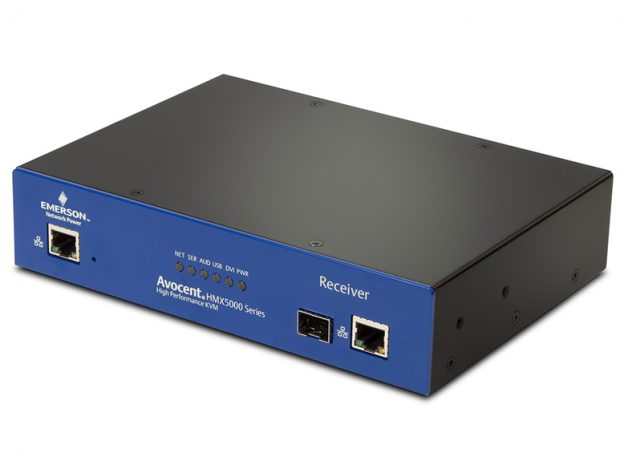

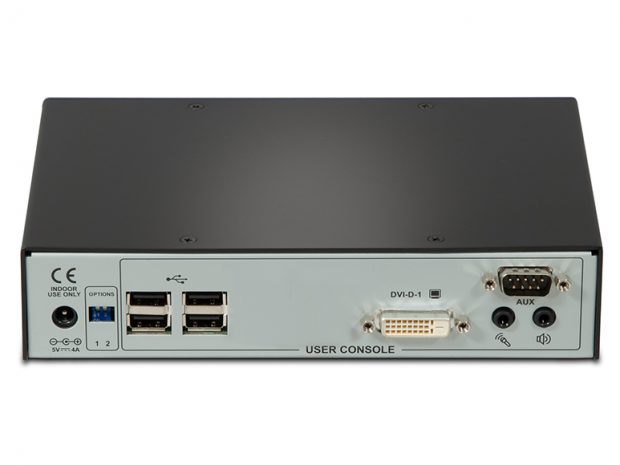

HMX RX single DVI-D, USB, audio, SFP HMX5100R-xxx
HMX TX dual DVI-D, USB, audio, SFP HMX5200T-xxx
HMX RX dual DVI-D, USB, audio, SFP HMX5200R-xxx
HMX 6000
Description Part Number

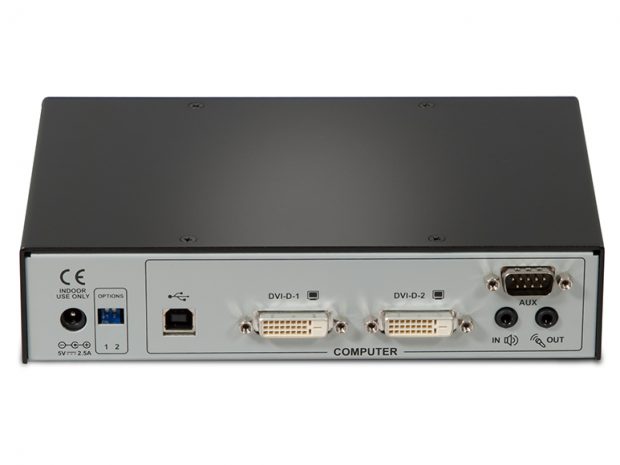

HMX TX dual DVI-D, QSXGA, USB, audio, SFP HMX6200T-xxx
HMX RX dual DVI-D, QSXGA, USB, audio, SFP HMX6200R-xxx
HMX TX dual DVI-D, QSXGA, USB, audio, SFP, VNC HMX6210T-xxx
RACK MOUNT KIT
Description Part Number
19in Rackmount kit for 2 HMX 5000/6000 RMK-81-xxx
19in Rackmount kit for 1 HMX 5000/6000 RMK-82-xxx
19in VESA mount kit for 1 HMX 5000/6000 RMK-83-xxx
ACCESSORIES
Description Part Number
Power Supply HMX 5000/6000 TX/RX PSC0005-xxx
SFP Multi Mode Fibre Module LC LC-MM-SFP-xxx
SFP Multi Single Fibre Module LC LC-SM-SFP-xxx
1000BASE-T Copper SFP Transceiver RJ45-CATX-SFP-xxx

*Note: Actual part number ends with country-specific code (example -001 for North America)

SERVICE OPTIONS
Description Part Number
YR GLD HW Maintenance HMX1 1YGLD-HMX1
1 YR GLD HW Maintenance HMX2 1YGLD-HMX2
1 YR GLD HW Maintenance HMXIQ 1YGLD-HMXIQ
1 YR GLD HW Maintenance HMXMGR 1YGLD-HMXMGR
2 YR GLD HW Maintenance HMX1 2YGLD-HMX1
2 YR GLD HW Maintenance HMX2 2YGLD-HMX2
2 YR GLD HW Maintenance HMXIQ YGLD-HMXIQ
1 YR GLD HW Maintenance HMXMGR 1YGLD-HMXMGR
YR GLD HW Maintenance HMX1 2YGLD-HMX1
2 YR GLD HW Maintenance HMX2 2YGLD-HMX2
2 YR GLD HW Maintenance HMXIQ 2YGLD-HMXIQ
2 YR GLD HW Maintenance HMXMGR 2YGLD-HMXMGR
Technical Specifications
MECHANICAL HMX ADVANCED MANAGER HMX 5000 HMX 6000
Height 1.73 in (44 mm) 1.76in (44 mm) 1.76in (44 mm)
Width 17 in (432 mm) 7.92 in (198 mm) 7.92 in (198 mm)
Depth 9 in (230 mm) 6.0 in (150 mm) 6.0 in (150 mm)
Weight 6 lbs (2.75 kg) 2.7 lbs (.1.1Kg) 2.7 lbs (.1.1Kg)
ENVIRONMENTAL
Operating Temperature 32° to 104°F
(0° to 40°C)
32° to 104°F
(0° to 40°C)
32° to 104°F
(0° to 40°C)
Storage Temperature -31° to 158°F
(-35° to 70°C)
-4° to 140° F
(-20° to 60° C)
-4° to 140° F
(-20° to 60° C)
Humidity 10% to 90%
non-condensing
10% to 90%
non-condensing
10% to 90%
non-condensing
POWER
Operating Voltage 100 – 240 VAC 100 – 240 VAC 100 – 240 VAC
Power Frequency 50/60Hz,1.5A,
input to power adapter
50/60Hz, 0.8A,
input to power adapter
50/60Hz, 0.8A,
input to power adapter
Input Power 12VDC, 60W output 5VDC 20W output
from power adapter
n/a
DEVICE SUPPORT
Computers n/a USB keyboard and mouse, USB mass storage devices
Virtual USB for non-isochronous human interface devices
USB keyboard and mouse, USB mass storage devices
Virtual USB for non-isochronous human interface devices
Video n/a 1 x DVI-D,
1920 x 1200 @ 60Hz, single or dual link
2 x DVI-D x 1200 @ 60Hz , two single link 2560 x 1600 @ 60Hz, one dual link
Audio n/a 3.5mm in,
3.5mm out
3.5mm in,
3.5mm out
USB n/a 4 x USB type A 4 x USB type A
HARDWARE SPECIFICATIONS
System Connections 2 1 1
Type of Network Connections 1 x 8p8c
1 x SFP
1 x 8p8c
1 x SFP
1 x 8p8c
1 x SFPr
Serial Port Type RS232 9-pin
D-type
RS232 9-pin
D-type
RS232 9-pin
D-type
STANDARDS
Approved Agency CE, FCC CE, FCC CE, FCC







  • Eliminates Distance Limitations within the LAN – Allows computers and users to be located anywhere on the network
  • High-Quality DVI Video and Digital Audio – For intensive graphic and audio applications
  • Centralized Management – Via a single console, including access, desktop pooling and reporting
  • Centralized, User-Rights Management – HMX system allows user administration and authentication through AD, LDAP, TACACS+, RADIUS, RSA SecureID and NT
  • Greater Security – 128bit AES encryption for secure access
  • No Dedicated Cabling – Removes the need for dedicated cabling between user and computer
  • Digital DVI Video – Up to 2560 x 1600or dual sessions at 1920×1200 each
  • USB Support – USB media and most other USB devices including USB keyboard/mouse
