Avocent MergePoint Unity™ 交换机是来自Avocent的第四代KVM over IP交换机。
MergePoint Unity™ 交换机为 IT 管理员提供了用于访问和控制服务器、网络设备及其他数据中心和分支机构设备的完整远程管理解决方案。
MergePoint Unity™ 交换机直接与物理 KVM、USB 和串行端口进行安全的远程带外连接，加强了通常通过网络接口卡完成的 IT 设备带内管理。这种统一的方法使得 IT 管理员能够更快速地诊断、重新配置或恢复设备，以符合服务水平协议和最大程度地减少停机时间。
Avocent MergePoint Unity Switches(MPU)
产品简介：
- 产品基本信息
- 产品特点与优点
Ordering Details

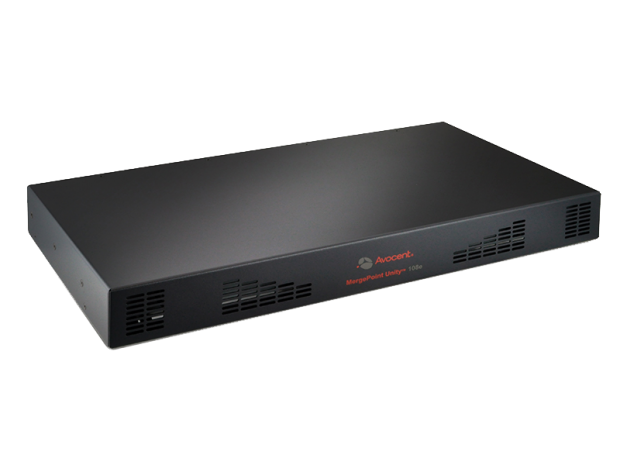

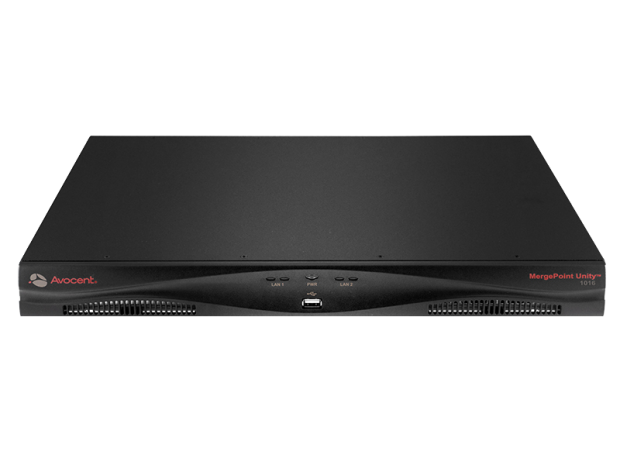

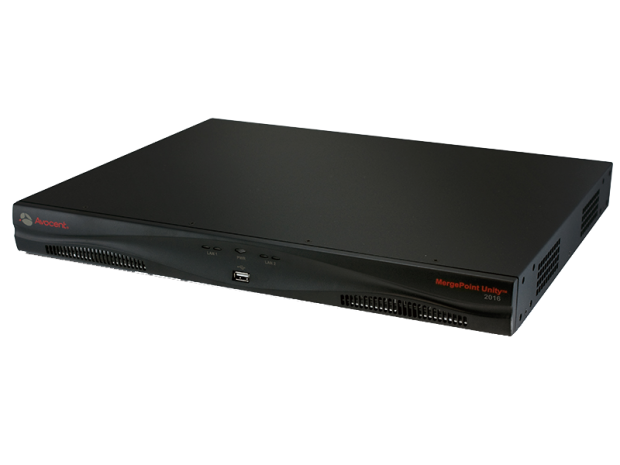

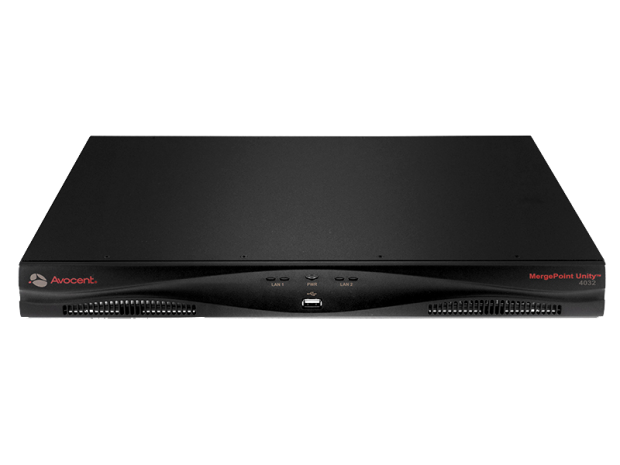

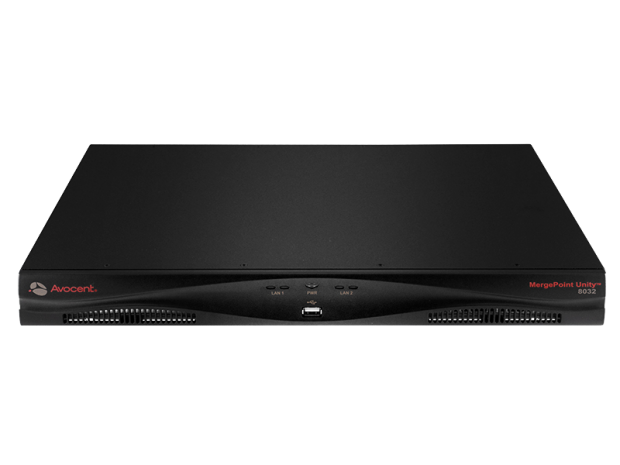

| MODELS | ||
|---|---|---|
| Description | Part Number | |
| 1digitaluser,1 local user,1PS/2 system KVM over IP desktop switch** | DSR1024PS2-xxx* | |
| 1 digital user, 1 local user, 1 USB system KVM overIP desktopswitch** | DSR1024USB-xxx* | |
| 8-port, 1 digital KVM path, dual AC power supply | MPU108EDAC-001 | |
| 16-port, 1 digital KVM path, dual AC power supply | MPU1016DAC-xxx* | |
| 16-port, 2 digital KVM paths, dual AC power supply | MPU2016DAC-xxx* | |
| 32-port, 2 digital KVM paths, dual AC power supply | MPU2032DAC-xxx* | |
| 32-port, 4 digital KVM paths,dual AC power supply | MPU4032DAC-xxx* | |
| 32-port, 8 digital KVM paths, dual AC power supply | MPU8032DAC-xxx* | |
| *Note: Actual part number ends with country-specific code (example -001 for North America) **The DSR 1024 does not support virtual media or CAC / smart cards |
||
| MODULES, CABLES AND ACCESSORIES | ||
|---|---|---|
| Description | Part Number | |

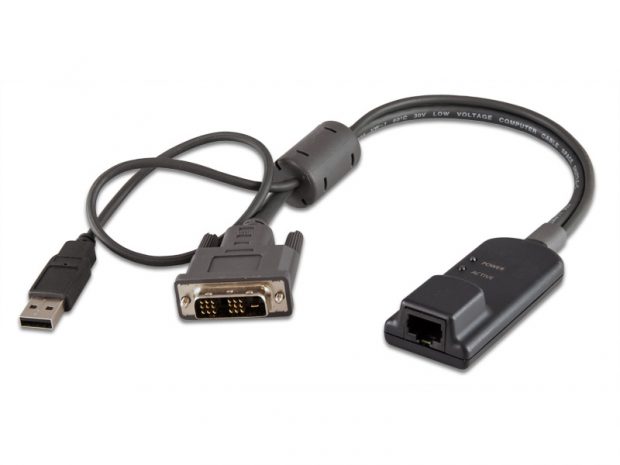

| Server Interface Module for DVI video, USB keyboard/mouse supporting virtaual media, CAC and USB2.0. Used with Avocent MergePoint Unity™ switch. | MPUIQ-VMCDV | |
| Server Interface Module for DVI video, USB keyboard/.mouse supporting virtual media, CAC and USB2.0. Used with Avocent MergePoint Unity™ switch.TAA compliant. | MPUIQ-VMCDV-G01 | |

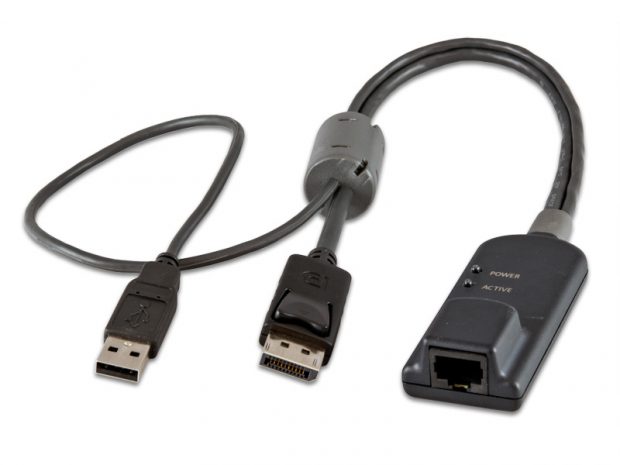

| Server Interface Module for DisplayPort video, USB keyboard/mouse supporting virtual media, CAC and USB2.0. Used with Avocent MergePoint Unity™ switch. | MPUIQ-VMCDP | |
| Server Interface Module for DisplayPort video, USB keyboard/mouse supporting virtual media, CAC and USB2.0. Used with Avocent MergePoint Unity™ switch. TAA compliant. | MPUIQ-VMCDP-G01 | |
| Server Interface Module for HDMI video, USB keyboard/mouse supporting virtual media, CAC and USB2.0. Used with Avocent MergePoint Unity™ switch. | MPUIQ-VMCHD | |
| Server Interface Module for HDMI video, USB keyboard/mouse supporting virtual media, CAC and USB2.0. Used with Avocent MergePoint Unity™ switch. TAA compliant. | MPUIQ-VMCHD-G01 | |
| Server interface module for VGA, USB keyboard, mouse supporting virtual media, CAC and USB2.0. Used with Avocent DSR™ and Avocent MergePoint Unity™ switches. | MPUIQ-VMCHS | |
| Virtual Media server interface module for USB 2.0 with 20in cable, required for DSR™and Avocent AutoView™ switches. | DSAVIQ-PS2M | |
| Avocent MergePoint Unity™ serial IQ (requires power form USB source or optional power supply for MPUIQ-SRL modules; | MPUIQ-SRL | |
| each UPD-AM can power up to four serial interface modules | UPD-AM | |
| Note: Legacy DSRIQs are also supported, please contact an Avocent sales representative for more information. | ||
| SERVICE OPTIONS | ||
|---|---|---|
| Description | Part Number | |
| 1 YR SLV HW Maintenance MPU104E | 1YSLV-MPU104E | |
| 1 YR SLV HW Maintenance MPU108E | 1YSLV-MPU108E | |
| 1 YR SLV HW Maintenance MPU1016 | 1YSLV-MPU1016 | |
| 1 YR SLV HW Maintenance MPU2016 | 1YSLV-MPU2016 | |
| 1 YR SLV HW Maintenance MPU2032 | 1YSLV-MPU2032 | |
| 1 YR SLV HW Maintenance MPU4032 | 1YSLV-MPU4032 | |
| 1 YR SLV HW Maintenance MPU8032 | 1YSLV-MPU8032 | |
| 2 YR SLV HW Maintenance MPU104E | 2YSLV-MPU104E | |
| 2 YR SLV HW Maintenance MPU108E | 2YSLV-MPU108E | |
| 2 YR SLV HW Maintenance MPU1016 | 2YSLV-MPU1016 | |
| 2 YR SLV HW Maintenance MPU2016 | 2YSLV-MPU2016 | |
| 2 YR SLV HW Maintenance MPU2032 | 2YSLV-MPU2032 | |
| 2 YR SLV HW Maintenance MPU4032 | 2YSLV-MPU4032 | |
| 2 YR SLV HW Maintenance MPU8032 | 2YSLV-MPU8032 | |
| 4 YR SLV HW Maintenance MPU104E | 4YSLV-MPU104E | |
| 4 YR SLV HW Maintenance MPU108E | 4YSLV-MPU108E | |
| 4 YR SLV HW Maintenance MPU1016 | 4YSLV-MPU1016 | |
| 4 YR SLV HW Maintenance MPU2016 | 4YSLV-MPU2016 | |
| 4 YR SLV HW Maintenance MPU2032 | 4YSLV-MPU2032 | |
| 4 YR SLV HW Maintenance MPU4032 | 4YSLV-MPU4032 | |
| 4 YR SLV HW Maintenance MPU8032 | 4YSLV-MPU8032 | |
| 1 YR GLD HW Maintenance MPU4032 | 1YGLD-MPU4032 | |
| 1 YR GLD HW Maintenance MPU8032 | 1YGLD-MPU8032 | |
| 2 YR GLD HW Maintenance MPU104E | 2YGLD-MPU104E | |
| 2 YR GLD HW Maintenance MPU108E | 2YGLD-MPU108E | |
| 2 YR GLD HW Maintenance MPU1016 | 2YGLD-MPU1016 | |
| 2 YR GLD HW Maintenance MPU2016 | 2YGLD-MPU2016 | |
| 2 YR GLD HW Maintenance MPU2032 | 2YGLD-MPU2032 | |
| 2 YR GLD HW Maintenance MPU4032 | 2YGLD-MPU4032 | |
| 2 YR GLD HW Maintenance MPU8032 | 2YGLD-MPU8032 | |
| 4 YR GLD HW Maintenance MPU104E 4Y | GLD-MPU104E | |
| 4 YR GLD HW Maintenance MPU108E | 4YGLD-MPU108E | |
| 4 YR GLD HW Maintenance MPU1016 4YG | LD-MPU1016 | |
| 4 YR GLD HW Maintenance MPU2016 | 4YGLD-MPU2016 | |
| 4 YR GLD HW Maintenance MPU2032 | 4YGLD-MPU2032 | |
| 4 YR GLD HW Maintenance MPU4032 | 4YGLD-MPU4032 | |
| 4 YR GLD HW Maintenance MPU8032 | 4YGLD-MPU8032 | |
Overview
The Avocent MergePoint Unity switch is the next generation KVM over IP switch replacing the award-winning DSR™ product.
This industry-leading switch provides IT administrators a complete and secure, remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.
Using both in-band and out-of-band tools together allows for a more fault-tolerant and complete, remote management solution. Remote, out-of-band connections complement traditional in-band/software tools to improve troubleshooting, shorten response times and help minimize unplanned downtime.
The Avocent MergePoint Unity switches provide remote users the capabilities of a direct, physical connection to KVM, USB and serial ports of servers and other IT equipment.
Model Comparison
| SWITCHES | USERS | PORTS | FEATURES |
|---|---|---|---|
| MPU108E | 1 local1 remote | 8 | virtual media/dual AC |
| MPU1016 | 1 local1 remote | 16 | virtual media/dual AC |
| MPU2016 | 1 local2 remote | 16 | virtual media/dual AC |
| MPU2032 | 1 local2 remote | 32 | virtual media/dual AC |
| MPU4032 | 1 local4 remote | 32 | virtual media/dual AC |
| MPU8032 | 1 local 8 remote | 32 | virtual media/dual AC |
| All models include support for PS2, Sun, USB and serial target devices | |||
Technical Specifications
| MECHANICAL | |
|---|---|
| Height | 1.72 in. (4.37 cm) |
| Width | 17 in. (43.18 cm) |
| Depth | 16/32-port models: 13.38 in. (34 cm); 4/8-port models: 9.2 in. (23.4 cm) |
| Weight | Single-power models: 8.1 lbs. (3.67 kg); Dual-power models: 8.6 lbs. (3.9 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | 32° to 22°F (0° to 50°C) |
| Storage Temperature | -4° to 158°F (-20° to 70°C) |
| Humidity | Operating: 20% to 80% relative humidity (non-condensing) Non-operating: 5% to 95% relative humidity, 38.7°C maximum wet bulb temperature |
| POWER | |
| Operating Voltage | 100 – 240 VAC |
| Power Frequency | 50-60 Hz auto-sensing |
| Input Power | 40W max |
| Power Consumption | MPU8032DAC/8032: 24W; MPU4032DAC/4032: 18W; MPU2032DAC/2032: 17 W; MPU2016DAC/2016: 13W MPU1016DAC/1016: 12W; MPU108EDAC/108E: 13W MPU104E:12 W |
| BTU/hr | MPU8032DAC/8032: 82 BTU/hr; MPU4032DAC/4032: 62 BTU/hr MPU2032DAC/2032: 57 BTU/hr; MPU2016DAC/2016: 45 BTU/hr MPU1016DAC/1016: 41 BTU/hr; MPU108EDAC/108E: 43 BTU/hr; MPU104E: 39 BTU/hr |
| DEVICE SUPPORT | |
| Computers | PS/2, Sun, USB and serial |
| Video | 640×480 @ 60 Hz; 800×600 @ 75 Hz; 960×700 @ 75 Hz; 1024×768 @ 75 Hz; 1280×1024 @ 75 Hz; 1600×1200 @ 75 Hz using the MPUIQ-VMC module |
| Peripherals | USB keyboard and mouse; VGA video |
| HARDWARE SPECIFICATIONS | |
| Number of Network Connections | 2 |
| Type of Network Connections | 0/100/1000 Ethernet |
| Serial Port Type | 1 configuration port, 2 power control ports |
| Serial Port Connector | RS-232, 8-pin modular |
| STANDARDS | |
| Approved Agency | FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1051)
UL, FCC, cUL, ICES-003, CE, VCCI,C-Tick |
Features and Benefits
- Advanced Remote Management – Provides secure and remote, out-of-band connections directly to the physical KVM, USB and serial ports to complement existing in-band software management tools
- Meet Service Level Agreements and Minimize Downtime – Unified approach enables IT administrators a faster method to diagnose, reconfigure or restore equipment
- Virtual Media – Enables USB media such as CD-ROMs, flash memory and external drives to be virtually attached to a remote server’s USB port
- CAC/Smart Card Support – Utilizing the virtual media capabilities remote or local users can map a USB-based smart card reader to the attached servers and authenticate using their smart cards
- Enhanced Serial Adapters – Supports standard, remote SSH connections to the attached serial devices and includes electronic pin-out options for quick and easy connections to the console ports on Cisco network equipment
- Power Device Port – Connect supported PDUs for integrated power control, measurement and reporting
- FIPS 140-2 Compliant Cryptography – The FIPS mode of operation uses an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1051)
